Water Storage Tanks with Magnelis®
Never before corrugated steel tanks have had such a good protection against rust. Magnelis® – a patented method of galvanazing is available exclusivly only in Bucon B.V.
Our tanks are available in sizes from Ø 1,82m till Ø 30,95m and from a height of 0,8m till 6,13m. They can be used for residential, industrial or agricultural applications.

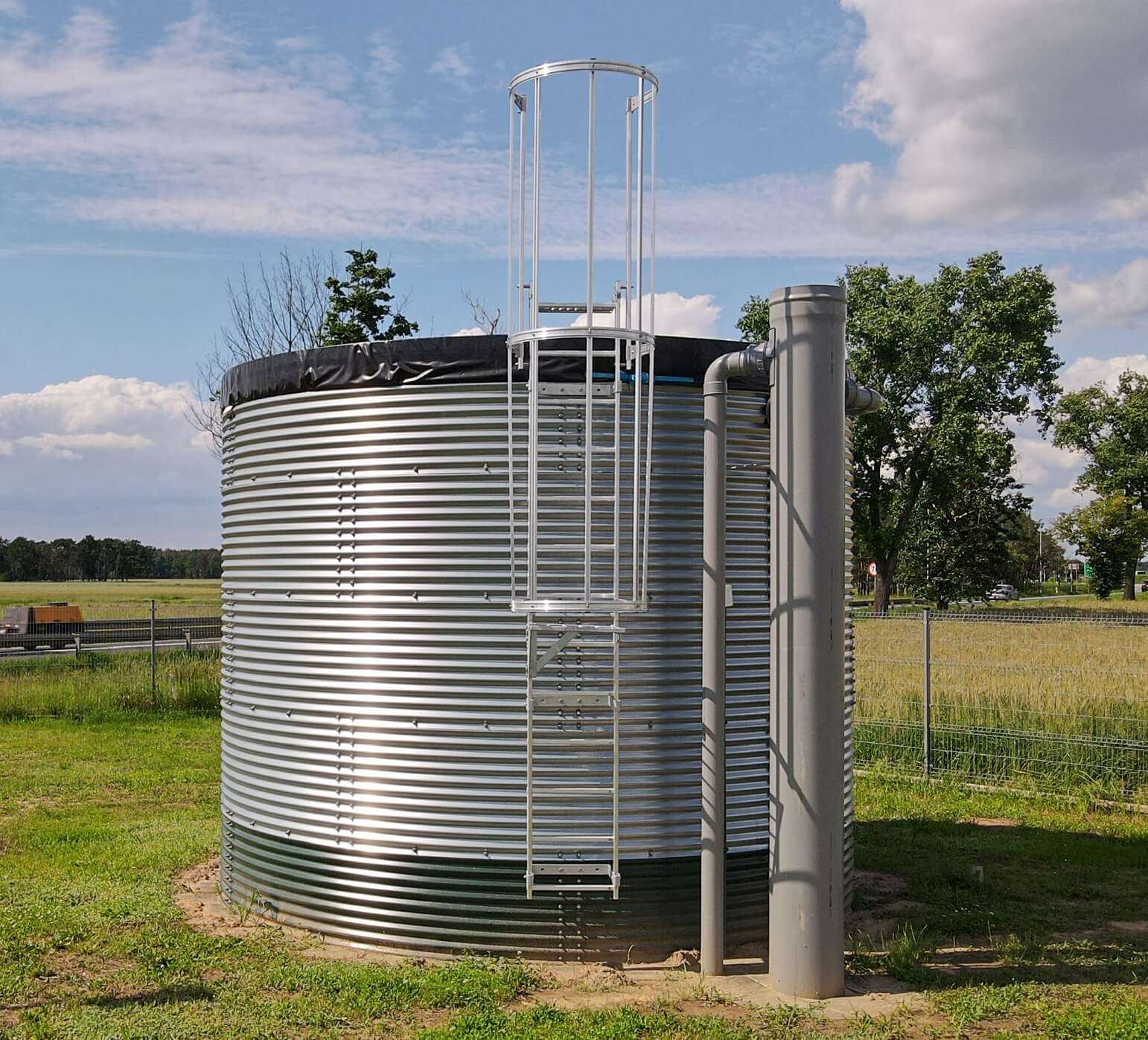

WATER STORAGE TANK
Guarantee of quality and reliability for years.
BUCON has implemented ground-breaking innovations on a well- known concept and can offer the best and cheapest solution.
The need to save water is increasing dramatically worldwide. All sectors are looking for reliable and affordable tank systems for the storage of, among other things, drinking water, waste water, irrigation water, manure, seawater and sludge. Our modularly built corrugated steel tanks offer the solution.
Granite®
HDX
Best protection against rust (RC5) and RUV4 UV protection Perfect for the aggressive manure environment.
Strongest
connection
Patented M12 bolt set with bolts cap provides 2x stronger connections and fewer bolt sets per tank.
Additional
equipment
Each Bucon tank can be additionally equipped with a mixer, (Un)Loading station and a floating cover.
Longest
warranty
Up to 15 yrs warranty on the construction of every BUCON tank!
Magnelis® Galvanised water tanks
Galvanisation method
exclusive to Bucon B.V.
Bucon zinc – magnesium – aluminium galvanisation
The S350 GD steel is galvanised on both sides to provide protection against rust. The steel’s corrosion resistance is not only determined by the thickness of the coating,but also by the composition. Studies at various universities have clearly shown that 3% magnesium provides greatly improved corrosion protection compared to other products on the market. That is why the BUCON tanks have a unique Magnelis®* galvanising layer that includes 3% magnesium and 3.5% aluminum in addition to zinc. Magnelis® offers the best available protection against rust, even under the most challenging conditions.
The patented Magnelis® galvanising method for corrugated steel tanks is available exclusively from BUCON.
Contact us to learn more about
The Bucon manure tanks
Steel Water Tank Coating – Granite® HDX
BUCON in colour!
Chromate free organic colour coating
The BUCON colour coating is organic and is applied immediately after galvanisation. This guarantees perfect adhesion of the coating and a very uniform layer thickness of 55 μm. This high-quality coating ensures long-term protection in aggressive environments.
Why you should chose Granite® HDX?
Highest level of rust protection (RC5), Highest level of UV resistance (RUV4), High scratch resistance (40 N), Excellent forming characteristics (1.5T), Extremely reliable and durable, Available as standard in light grey (RAL 7038) and dark green (RAL 6009)
Strongest connection
Patented bolt set design
The strength of the tank construction is determined by the steel quality, corrugated profile and bolt sets.
The bolts and rings of BUCON tanks have the same shape as the corrugation of the steel sheets. This achieves a much larger contact surface with the sheets. As a result, the tensile strength that the connection is able to handle is twice as large as with normal bolts. The BUCON bolt sets also ensure faster assembly as they cannot continue running
In the Bucon design, these parts have been improved:
S350 GD steel quality, which is stronger than usual, The corrugated profile is increased from 18 to 20 mm, which makes our tanks considerably firmer and more rigid, The patented bolt set can handle a much greater tensile strength and provides twice as strong a connection
